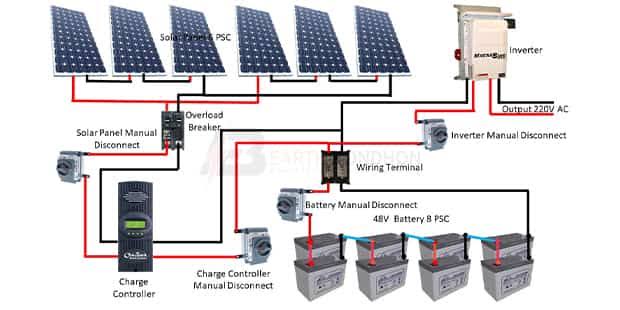

A solar panel wiring diagram with an inverter shows the electrical connections between solar panels, a charge controller, an inverter, and batteries (optional) to convert solar energy into usable AC power. Here's a basic overview:

1. **Solar Panels**: The solar panels generate DC electricity from sunlight. These are connected in series (for higher voltage) or parallel (for higher current), depending on the system’s power requirements.

2. **Charge Controller**: This device regulates the voltage and current coming from the solar panels to prevent overcharging the battery (if the system includes energy storage). In systems without batteries, a charge controller may not be necessary.

3. **Battery (Optional)**: If the system includes batteries, the charge controller connects to them. Batteries store excess energy generated during the day for use during nighttime or cloudy conditions.

4. **Inverter**: The inverter converts the DC power from the solar panels (or batteries) into AC power, which can be used by most home appliances. There are two types of inverters: string inverters (for larger systems) and microinverters (for smaller setups or individual panels).



The wiring must be carefully configured to ensure safety, efficiency, and proper functioning. Grounding and circuit protection devices (fuses or breakers) are essential components in the diagram【24†source】.
