Electrical transformers types

 Electrical transformers are fundamental components in power distribution and transmission systems. They play a critical role in stepping up or stepping down voltage levels, thus enabling the efficient transfer of electricity over long distances and ensuring the safe and reliable delivery of power to end users. Understanding the various types of electrical transformers is essential for professionals in the electrical engineering field, as well as for anyone interested in how power gets from the power plant to their home or business. This article delves into the different types of electrical transformers, focusing on their functions, applications, and distinguishing features.





### 1. Power Transformers

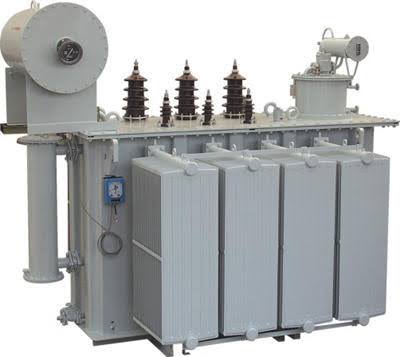

  Power transformers are primarily used in transmission networks for stepping up (increasing) or stepping down (decreasing) voltage levels. They are designed for high-efficiency operation at full load and are critical in connecting different grid segments. Power transformers are characterized by their large capacity and are commonly used in substations and power generation facilities. They are key in minimizing energy loss over long distances, making electricity transmission more efficient and sustainable.



### 2. Distribution Transformers Distribution transformers are the most visible types of transformers to the general public; these are the units typically seen on poles or in underground vaults in residential neighborhoods. Unlike power transformers, they are designed for efficiency at low load levels, corresponding to the fluctuating demand of residential and commercial users. These transformers step down the voltage from transmission levels to levels suitable for end-use, typically in the range of 120 to 480 volts. Their sizes vary depending on the demand and the distance from the power source.

3. Instrument Transformers

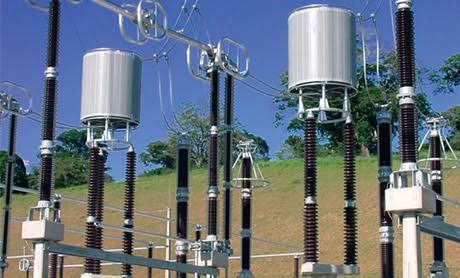

  Instrument transformers are specialized devices used to isolate or translate the high voltages and currents of a power system to measurable values that can be easily read by instruments and meters. They are crucial for the safe monitoring and control of electrical systems. Instrument transformers are subdivided into two main types:



- **Current Transformers (CTs):** These transformers are used to measure high currents, stepping them down to a safe level for meters and relays.

- **Voltage Transformers (VTs) or Potential Transformers (PTs):** They step down high voltages to safer, lower levels for measurement and monitoring purposes.

### 4. Isolation Transformers Isolation transformers are designed to isolate one part of an electrical system from another so that the power can be transferred without a direct electrical connection. This isolation is critical for protecting against electric shock, minimizing noise, and safeguarding sensitive equipment. They are widely used in various settings, including medical facilities, where equipment isolation is crucial for patient safety.

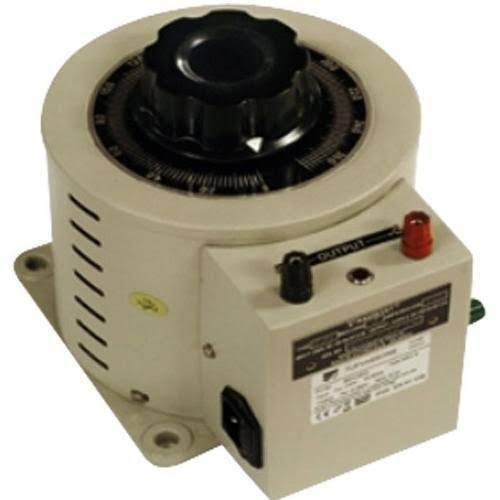

### 5. Auto Transformers Auto transformers are unique because they offer variable turn ratios. Unlike conventional transformers, which have separate primary and secondary windings, auto transformers have a single winding with one or more taps. These taps allow for adjustable voltage ratios, making auto transformers versatile and efficient for applications where a wide range of voltage adjustments is necessary. They are used in applications such as railway electrification systems and as voltage regulators.

### 6. Three-Phase Transformers Three-phase transformers are designed to work with three-phase electricity, common in large commercial and industrial installations. They are more efficient than single-phase transformers and are used to step up or step down voltages in three-phase electrical systems. These transformers can be constructed by connecting three single-phase transformers together or can be built as a single unit on a three-phase core.

### 7. Specialty Transformers Aside from the main types listed above, there are specialty transformers designed for specific applications or industries. For instance:

- **Furnace Transformers:** Designed for high current applications such as electric arc furnaces used in steelmaking.

- **Rectifier Transformers:** Used in applications where the conversion of AC to DC power is necessary.

- **Pulse Transformers:** Designed for coupling pulses within circuits, commonly used in telecommunications and radar systems.



In conclusion,

 The variety of electrical transformers underscores their critical role in modern power systems. Each type is engineered with specific features to meet the needs of different applications, from large-scale power transmission to precision electrical measurements. Understanding the characteristics and applications of each type of transformer is crucial for the effective design, operation, and maintenance of electrical power systems. As technology advances, the development of more efficient and specialized transformers is likely to continue, addressing the evolving challenges of global energy demand and distribution.
